Aura Series Fresnel ALR Fixed Frame UST Projection Screen

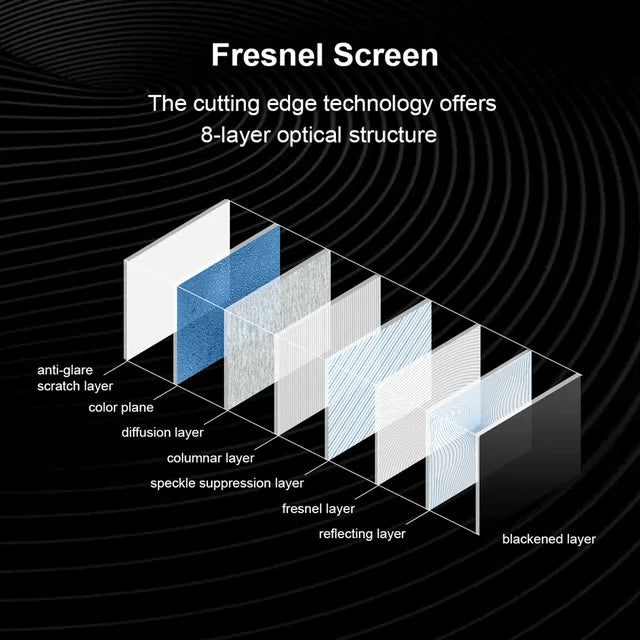

Fscreen’s latest generation of ultra-short-throw flexible Fresnel screen uses an 8-layer Fresnel optical structure and OMNIS optical image technology developed by Fscreen. It can effectively block more than 85% of ambient light from the top and sides, while supporting up to 8K physical ultra-high-definition resolution, and can present excellent color and contrast both during the day and at night. Enjoy stunning visual effects. Perfectly adapted to Tri-Chroma laser ultra-short-throw projection.
Product Parameters
| Brand | Fscreen |
|---|---|
| Product Name | Fresnel ALR Fixed Frame UST Projection Screen-120 Inch |
| Product Model | Aura-120-FF |

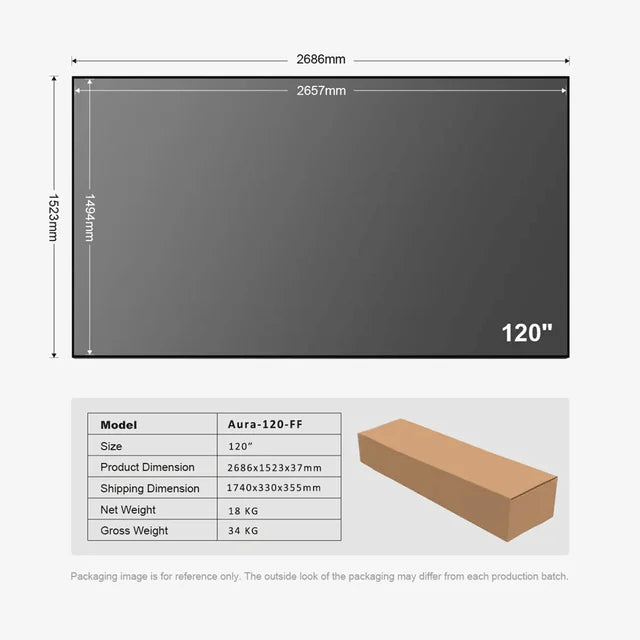

| Product Dimension | 2681 x 1518 x 37 mm |
| Outer Package Dimensions | 1740 x 330 x 355 mm |
| Projection Area | 2657 × 1494 mm |
| Net Weight | 18 KG |
| Gross Weight | 34 KG |
Optical Parameters
| Compatible Projector Throw Ratio | 0.18:1 – 0.28:1 (Ultra Short Throw) |
|---|---|
| Peak Gain Value | 1.35 |
| Horizontal Viewing Angle | 160° |

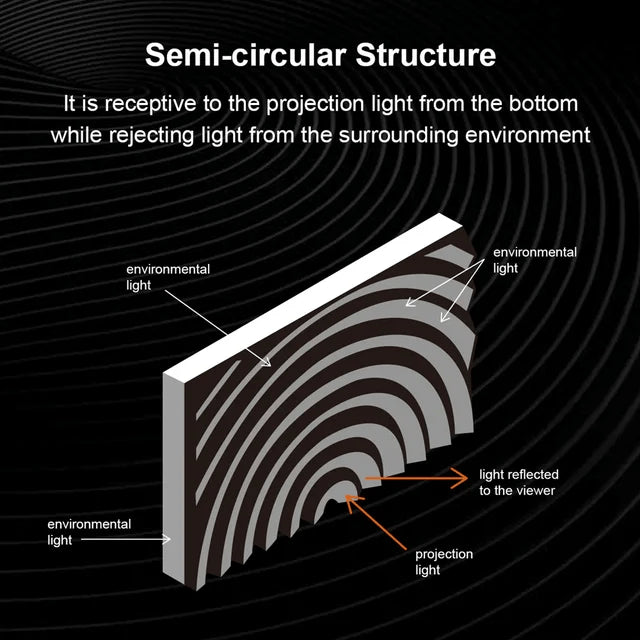

| Ambient Occlusion Value | ≥85% (Rejecting Light From Ceiling and Side) |
| Contrast VS Matte White | 100 : 1 (Under Bright Light Environment) |
| Display Compatibility | 8K, HDR, 3D, Tri-Chroma (Triple Laser) |
| Aspect Ratio | 16 : 9 |
